Query languages (basic)
Within-Database

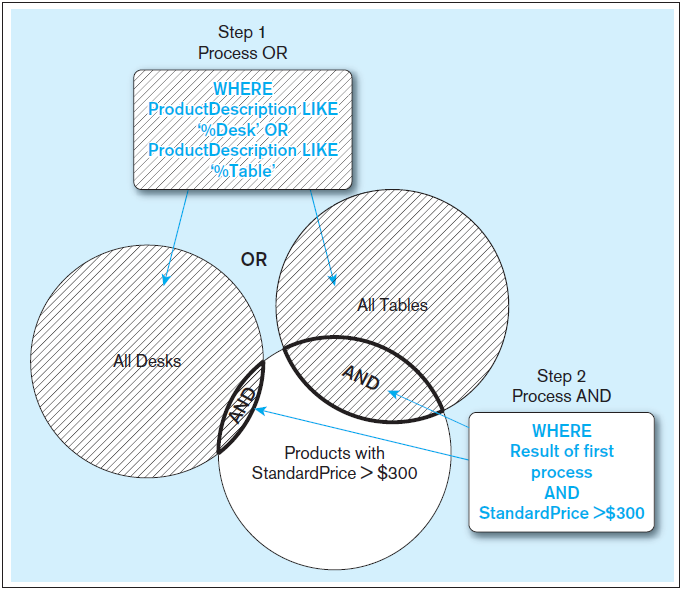

Visualizes the order in which the boolean operators are processed inside a WHERE clause
| Symbol | Concept |
|---|---|
| set | tables |
| boxes | processing steps |
Multiple Boolean operators inside a WHERE clause
